PLA is meant to be the easy one. Low print temperature, minimal warping, forgiving on a cold day. So when you hit first layer adhesion problems with PLA, it’s genuinely frustrating — the corners lift, the skirt peels, or the whole part skates around the bed before the second layer goes down. The good news: PLA adhesion failures almost always trace back to a short list of root causes, and every one of them is fixable with a specific, measurable adjustment.
This guide walks through those causes in the order they actually matter — nozzle height, bed temperature, and a clean surface — and tells you exactly what a good first layer should look like so you can stop guessing.
Why PLA’s first layer fails (the physics in plain English)
PLA’s glass transition temperature (Tg) — the point where it softens from hard and brittle into soft and rubbery — sits around 60–65°C. That number matters because a heated bed does two jobs at once. First, adhesion: keeping the first layer warm and just below Tg makes it tacky, so it bonds to the surface instead of cooling instantly and curling away. Second, stability: warming the base of the print reduces thermal contraction, which keeps internal stress low and stops corners lifting.
That lifting is warping. As layers cool unevenly, residual thermal stress accumulates through the build, and it shows up worst on large, flat models where contraction forces add up across a wide area. PLA is comparatively forgiving here — its low printing temperature makes it far more resistant to warping than ABS — but “forgiving” isn’t “immune”, especially in a cool room or on a big part.
Root cause #1: nozzle height and Z-offset
First layer adhesion problems usually start with nozzle height, bad temperatures, or a dirty bed — and of those, height is the most common culprit. Bed levelling and Z-offset tuning fix the majority of adhesion issues on their own.
Your Z-offset is the vertical distance between your probe’s trigger point and the nozzle tip. Get it wrong and the printer believes the nozzle is touching the bed when it’s actually ~0.1mm too high (nothing sticks) or ~0.1mm too low (the nozzle digs in and drags).
The paper test — with one critical caveat
Slide a sheet of paper between the nozzle and bed while adjusting height; you want to feel slight resistance. But here’s the mistake people make: don’t do the paper test cold. The nozzle and bed both expand when heated, so always level at printing temperature, not when the machine’s just switched on.
Live tuning: dial it in while it prints
The paper test gets you close. To nail it, tune live:

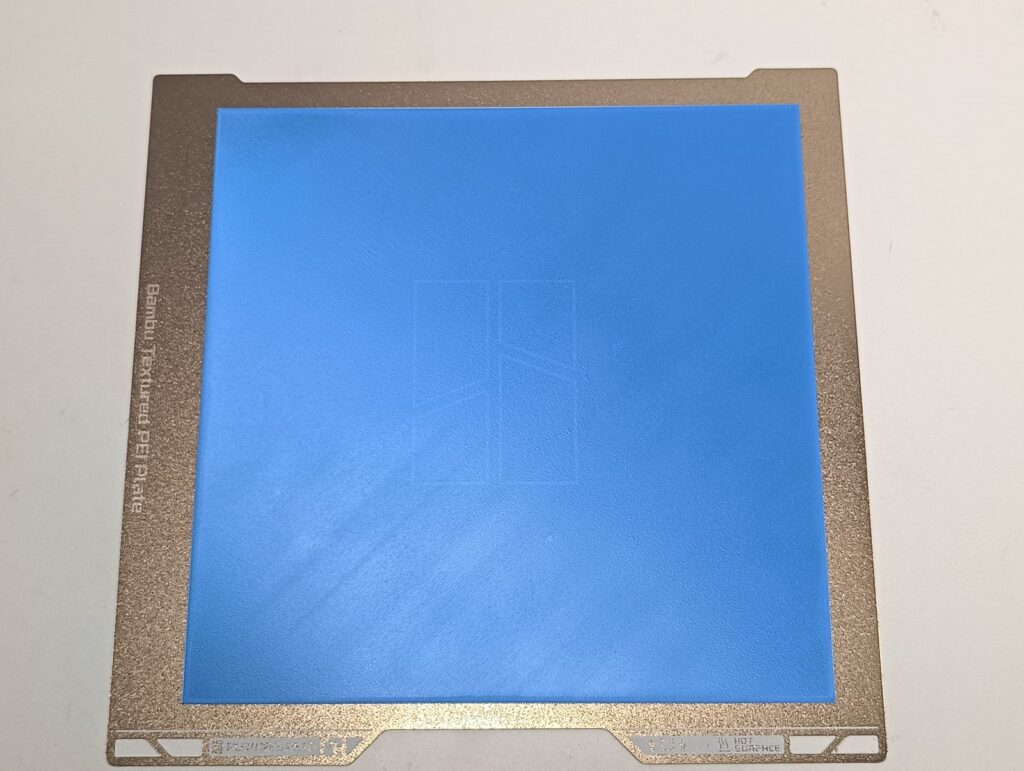

- Slice a single-layer square at 0.2mm layer height.
- Start the print and adjust Z-offset (babystepping) in 0.02mm increments while watching the lines being laid down.
Now read the extruded lines:
- Perfect: lines are flat on top with slightly rounded edges, adjacent lines feel continuous with no gaps or ridges, and the line width matches your nozzle (a 0.4mm line from a 0.4mm nozzle).
- Too high (too far): lines are round in cross-section like a sausage, neighbouring lines don’t touch, there are visible gaps, and the print peels off easily — the filament was laid on top of the bed rather than pressed into it.
- Too low (dragging): lines look translucent, are wider than the nozzle, and ridges rise between them — the “plough effect”. In extreme cases the nozzle scrapes through filament it already laid, which can damage the bed and risk a clog.
Verification test: when the square finishes, peel it off and flex it. A good first layer bends as a single bonded sheet. A bad, too-high layer separates into individual strands.
Root cause #2: bed temperature
The general consensus for PLA is 50–60°C, with some filaments happy up to 65°C. The principle is simple: set the bed near PLA’s glass transition point. Too hot and you get elephant’s foot (a squished, bulging base) or removal becomes a fight; too cold and you get warping or detachment.
- Below 45°C often causes lifting corners or complete detachment, particularly on larger prints.
- Above 70°C can deform or over-squish the bottom layers, making them too soft and difficult to remove.
- Above 65°C offers no real benefit for PLA — it just wastes electricity and softens the first layers.
Ambient temperature matters more than people expect. In a cool room, lean toward the higher end — around 60°C — to keep the critical first few layers thermally stable. That said, bed temperature is filament-, printer- and surface-dependent: Cura’s default PLA profile is 60°C, while some users run 45–50°C successfully on PEI plates. Start at your filament manufacturer’s recommendation and adjust from there rather than copying a number off the internet.
Root cause #3: a contaminated bed
This is the hidden one. A perfectly levelled bed with a flawless Z-offset will still fail if the surface is dirty, and finger oils are the enemy. A single touch deposits enough oil to create a non-stick patch the size of your fingerprint — which is exactly why prints sometimes lift in one corner while the rest sticks fine.
Clean with isopropyl alcohol (IPA) on a microfibre cloth. For a shiny new PEI sheet, 70% IPA wipes are fine, but they struggle against accumulated grease — for that, 91% or higher is far more effective, and many makers keep 99% on the bench. Wipe in a single direction, not circles, for the cleanest result.
Build surfaces and PLA
PEI is the default for good reason — it offers strong natural adhesion with PLA, PETG and ABS, and maintenance is simply a wipe with IPA on a microfibre cloth. Glass beds give PLA a beautifully smooth, glossy underside but can need a little help (glue stick or a light spray) to grip. Textured PEI sits in between: reliable adhesion and a matte finish, with easy release once the plate cools.
If you’re fighting the opposite problem on another filament — too much adhesion — our guide to first layer adhesion issues with PETG covers that trade-off in detail.
A quick adhesion checklist
- Clean the bed with 91%+ IPA, single-direction wipes. Don’t touch the surface afterwards.
- Level and set Z-offset at printing temperature, not cold.
- Set bed temp to your filament’s recommendation (start ~55–60°C), nudge up in a cool room.
- Print a single-layer square and babystep Z in 0.02mm steps until lines are flat-topped and continuous.
- Peel and flex the test square — it should bend as one bonded sheet.
Want the exact slicer values rather than principles? We’ve published the numbers for both major slicers: PrusaSlicer first layer settings and OrcaSlicer first layer adhesion settings.
When you can’t tell what’s wrong
Sometimes the first layer looks almost right but still won’t stick, and staring at it doesn’t help. That’s exactly what our Diagnose tool is for: upload a photo of the failed print and our vision-AI identifies the defect and returns concrete, slicer-specific setting recommendations — including downloadable .ini patches for PrusaSlicer and OrcaSlicer. For a deeper dive on the approach, see how to diagnose a failed print from a photo.
FAQ
What bed temperature should I use for PLA?
Start in the 50–60°C range, near PLA’s glass transition point (60–65°C). Below 45°C tends to cause lifting and detachment; above 65°C wastes power and softens the first layers without improving adhesion. Begin at your filament manufacturer’s figure and adjust for your room — lean toward 60°C if it’s cold.
Why does my PLA stick at first then peel off mid-print?
That’s classic warping. As the part cools unevenly, thermal stress accumulates and pulls the base up at the corners — most visible on large, flat models. A warmer bed, a clean surface, a brim, and reducing cooling on the first few layers all help.
Is the paper test reliable for setting nozzle height?
It gets you close, but only if you do it at printing temperature — the nozzle and bed expand when heated. For a precise result, follow up with a single-layer test square and babystep your Z-offset in 0.02mm increments while watching the lines.
How should I clean my print bed?
Wipe with isopropyl alcohol on a microfibre cloth in a single direction. Use 91% or higher for accumulated grease; 70% only really works on a clean new PEI sheet. Then avoid touching the surface — one fingerprint can create a non-stick patch.
