If your prints are lifting at the corners, refusing to stick, or leaving a smeared, gappy first layer, the fix is almost always in your slicer — not your glue stick. This guide covers the OrcaSlicer first layer adhesion settings that actually matter, the exact values worth trying, and the order to change them in so you stop guessing and start printing.

We’ll keep it practical: real numbers, plain reasoning, and the specific parameters in OrcaSlicer that move the needle. No “have you tried levelling your bed?” filler.

Why first layer adhesion fails in the first place

Bed adhesion is a balance between three things: how close the nozzle is to the plate, how much plastic you push out, and how well that plastic bonds before it cools. Get any one of those wrong and you get the classic symptoms — warped corners, “not sticking” patches, or an over-squished, elephant’s-foot mess.

Before you touch a single setting, rule out the cheap stuff:

  • Clean plate. Wash a PEI or glass bed with warm water and dish soap, not just IPA. Fingerprint oils kill adhesion faster than any setting.
  • Correct Z-offset. Software settings can’t rescue a nozzle that’s 0.3 mm too high.
  • Dry filament. Wet PETG and nylon hiss, bubble and refuse to lay down a clean first layer.

With those sorted, the slicer does the rest. Here’s where to look in OrcaSlicer.

The OrcaSlicer first layer adhesion settings that matter

1. First layer height: 0.2–0.28 mm

Find this under Quality > Layer height > Initial layer height. A thicker first layer is more forgiving — it bridges small bed imperfections and gives more melted plastic to bond. For a 0.4 mm nozzle, 0.25 mm is a reliable default. Going below 0.2 mm makes adhesion fussier, not better.

2. First layer line width: 100–120%

Under Quality > Line width > Initial layer. Widening the first layer line lays down more material and increases the contact patch with the bed. Try 110% (about 0.44 mm on a 0.4 mm nozzle). This is one of the most underused adhesion fixes in OrcaSlicer.

3. First layer speed: 20–30 mm/s

Under Speed > Initial layer speed. Slow the first layer right down so the extruder can keep up and the plastic has time to bond. 20 mm/s for the main first layer and around 15 mm/s for the first-layer infill is a safe starting point. Fast first layers are a leading cause of poor adhesion on bigger plates.

4. First layer flow / extrusion: nudge +2–5% only if needed

Don’t reach for flow first. If your first layer looks slightly starved with visible gaps between lines after dialling in height and width, a small bump under Quality > Advanced > Flow ratio can help — but over-extruding the first layer creates elephant’s foot and ridges that throw off later layers. Calibrate flow properly before treating it as an adhesion lever.

5. First layer temperature: +5 °C over your normal value

Under Filament > Initial layer printing temperature. A hotter first layer flows into the bed texture better. For PLA that’s typically 215 °C, for PETG 240 °C. Pair it with a hot bed: 60 °C for PLA, 80–85 °C for PETG/ABS.

6. Brim and skirt: the adhesion safety nets

Under Others > Brim. For tall or small-footprint parts, an outer brim of 3–5 mm dramatically increases the grip area and fights warping. Set Brim-object gap to 0.1 mm so it stays attached but peels off cleanly. For warp-prone materials like ABS, this is non-negotiable.

Material-by-material starting points

  • PLA: bed 60 °C, first-layer nozzle 215 °C, 0.25 mm height, 110% width, 20 mm/s. Usually sticks to bare PEI with no glue.
  • PETG: bed 80 °C, first-layer nozzle 240 °C, slightly higher Z-offset to avoid it bonding too hard to PEI (use a glue layer as a release agent on textured PEI).
  • ABS/ASA: bed 95–110 °C, enclosure or draft shield, 5 mm brim, slow first layer. Warping is your enemy here, so maximise contact area.
  • TPU: bed 40–50 °C, slow first layer (15–20 mm/s), modest flow. It sticks easily but is sensitive to over-squish.

The order to change things — don’t shotgun every setting

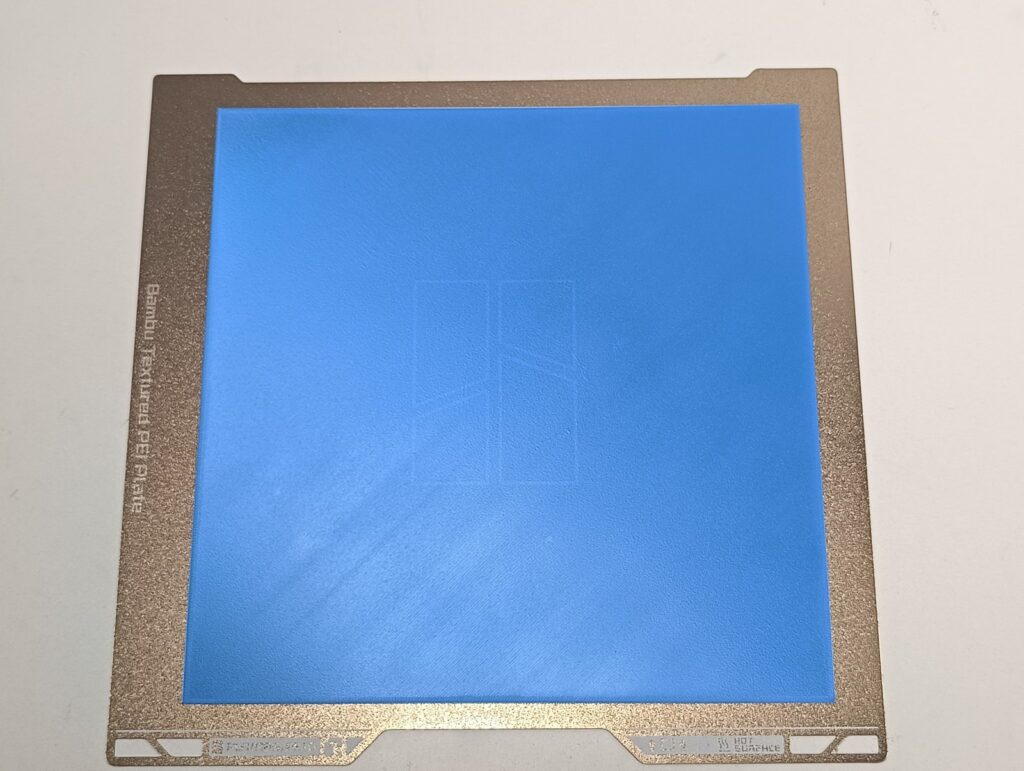

Changing six parameters at once teaches you nothing. Work through them in this order, printing a 100 mm × 100 mm single-layer test square between changes:

  1. Z-offset / first layer calibration — get the squish right first.
  2. First layer height and line width — give it more material and contact area.
  3. First layer speed — slow it down.
  4. Temperature — add 5 °C if it still won’t bond.
  5. Brim/skirt — add as insurance for warp-prone or small parts.

If you want exact, copy-paste numbers and a deeper walkthrough of the squish-and-flow relationship, our PrusaSlicer settings to fix first layer problems guide uses the same logic — the parameter names map almost one-to-one onto OrcaSlicer.

Let the AI read your first layer for you

If you’ve tried the above and your first layer still looks wrong but you can’t name the defect, take a photo. Our AI failure diagnosis tool analyses the image, identifies whether you’re seeing under-extrusion, over-squish, poor adhesion or a contamination issue, and returns slicer-specific fixes — including downloadable .ini patches for OrcaSlicer and PrusaSlicer so you can apply the exact values without hunting through menus.

It’s the difference between a generic chatbot guessing and a vision model that’s been trained on real-world failed prints. For background on how that diagnosis works, see diagnosing a failed print from a photo. And before you hit print on anything important, run your file through our gcode pre-flight checker to catch first-layer and config problems before they waste filament.

FAQ

What is the best first layer height in OrcaSlicer for adhesion?

For a 0.4 mm nozzle, 0.25 mm is the sweet spot. It’s thick enough to bridge minor bed imperfections and bond well, without the over-squish you get below 0.2 mm.

Why won’t my first layer stick even with the right settings?

Nine times out of ten it’s a dirty plate or wrong Z-offset, not a slicer value. Wash the bed with soap and water, recheck your Z-offset, and confirm the filament is dry. Only then start tuning height, width and speed.

Should I increase flow rate to fix first layer adhesion in OrcaSlicer?

Only as a last resort, and only by 2–5%. Over-extruding the first layer causes elephant’s foot and uneven layers. Fix height, line width and Z-offset first — they solve most adhesion problems without touching flow.

Do I need a brim for every print?

No. Brims are for tall, small-footprint or warp-prone parts (especially ABS and ASA). For broad, stable PLA prints on a clean PEI bed, a skirt is enough.

Dial these in once, save them as an OrcaSlicer process profile, and first-layer failures stop being a daily fight. When one does slip through, snap a photo and let the AI tell you exactly which value to change.

Related: First Layer Adhesion Problems with PLA: The Real Causes and Exact Fixes
